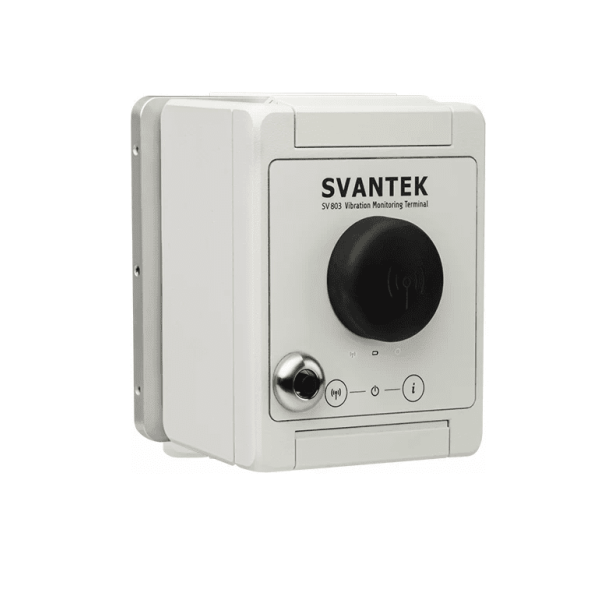

The SV 803 is a wireless vibration monitor from Svantek designed for use in the UK to meet British Standards for building and ground vibrations. It uses geophones as sensors for high sensitivity and energy efficiency, with a battery life of up to 6 months and the ability to sustain ongoing operation when connected to a solar panel.
| Brand | Svantek |
|---|---|
| Available Outside the UK? | No |
The SV 803 vibration monitor is designed to meet the high standards of Class 1 as outlined in British Standard BS 7385-1 (ISO 4866) and DIN 45669-1, making it suitable for building and ground vibration monitoring in accordance with DIN 4150-3 and BS 7385-2. This device is ideal for both engineering analysis and field monitoring, as it provides reliable and accurate measurements.
The SV 803 wireless vibration monitor, with its advanced firmware, can measure vibration velocity in accordance with the British Standard BS 7385-2 using the Peak Particle Velocity and Dominant Frequency method, which is based on fast Fourier transform (FFT) analysis. The device is able to analyze vibration events independently and send SMS and email alerts directly from the onboard modem in case of an alarm, minimizing the risk of transmission delays or missed alarms. Because of this, it is a great way to monitor vibrations in real time in a variety of industrial settings.
To meet the requirements of a construction site monitoring program in the UK, the SV 803 vibration monitor can be paired with the SV 307A dust and weather monitoring station and a wireless sound monitor, which can all be easily connected to a single monitoring network called SvanNET. This allows for efficient and thorough monitoring of large areas such as transportation and construction sites. SvanNET allows for the combination of data from various sensors, including those measuring noise, vibration, dust, and weather, into a single, user-friendly software platform, making it easy to understand and navigate. This all-in-one monitoring solution is highly compatible and flexible, making it a valuable addition to any organization's monitoring tools.
Wireless Vibration Monitor SV 803
|
Applications |
|
|
Building/ground vibration |
Yes |
|
Hardware Features |
|
|
Number of channels |
3 |
|
Self-vibration detection |
- |
|
Auto-calibration |
- |
|
Remote system check |
Yes |
|
Remote communication |
Yes |
|
Bluetooth |
Yes |
|
GPS module |
Yes |
|
Communication Interfaces |
4G, Bluetooth, 2 x WEIPU |
|
LED indicator |
Yes |
|
Display |
- |
|
Keyboard |
3 Push Buttons |
|
Memory |
32GB |
|
Battery type |
Li-ion |
|
Operating time |
UNLIMITED with SB 803 battery pack and solar panel in power saving mode |
|
Operating temperature range |
-10 °C ÷ +50 °C |
|
Weight |
3.5 kg including battery and mounting platform |
|
Size |
163 x 128 x 115 mm |
|
IP rate |
IP67 |
|
Vibration measurement features |
|
|
Standards |
DIN 45699-1:2020-06; ISO 4866:2010, Class 1; IEC 61260:2014, Class 1 |
|
Number of channels |
3 |
|
Sensor type |
Tri-axial geophone |
|
Measurement range |
3 um/s RMS ÷ 100 mm/s RMS (141 mm/s Peak) |
|
Frequency range |
0,8 Hz ÷ 400 Hz (-3 dB) |
|
Profiles per channel |
3 |
|
Weighting filters |
DIN 80, DIN 315, VEL1, KB |
|
Time constants |
Fast 125 ms in accordance to DIN 4150-2 |
|
Min logging step |
1s |
|
1/1 octave |
- |
|
1/3 octave |
Yes |
|
WAV recording |
Yes |
|
FFT |
Yes |
*Continuous product development and innovation are the policy of our company. Therefore, we reserve the right to change the specifications without prior notice.
The SV803 is supplied with the following:-
