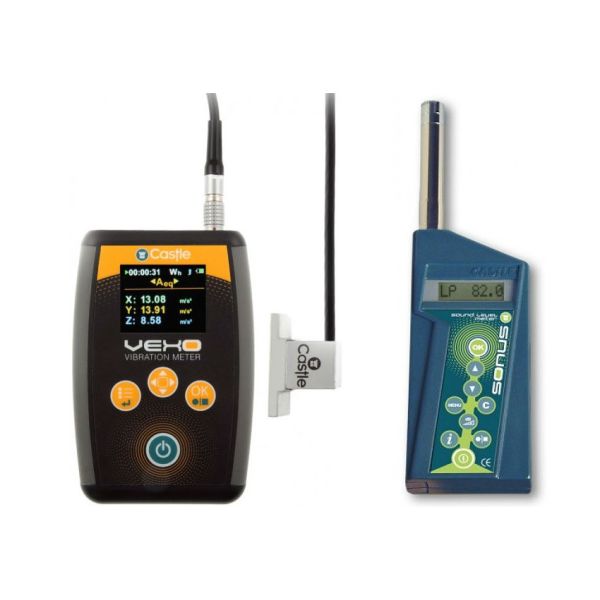

This is the Castle Noise and Vibration Compliance Kit which includes the Castle GA2006H Vexo Tri-Axial Hand Arm Vibration Meter and the Castle Sonus GA116L Class 1 Logging Sound Level Meter System. The Noise and Vibration Kit is for people who want to be fully compliant to the Noise and Vibration regulations.
| Brand | Castle Group |
|---|---|
| Available Outside the UK? | Yes |
For one comprehensive system to help with compliance to The Control of Vibration at Work Regulations (2005), The Control of Noise at Work Regulations (2005), and the new BS 4142:2014 Methods for rating and assessing industrial and commercial sound) look no further than the Castle Noise and Vibration Compliance System.
This is the GA2006H Vexo Tri-Axial Hand Arm Vibration Meter which measures vibration levels and reduces your risk of hand-arm vibration syndrome (HAVS). It is a powerful meter capable of accurate measurements whilst remaining simple to use. The meter has been designed with only 3 operational buttons making it possible to take measurements with ease which can be easily read on the large colour display or stored for later download to Vibdata Vibration Analysis Software. A rechargeable battery pack ensures that your vibration meter is ready and waiting whenever you need it. The meter can be used anywhere and effectively measure vibration exposure to ensure HAVS doesn't become a problem with your workforce and it has been built to be tough, in a small and rugged case.
This is the Sonus GA116L Class 1 Logging Sound Level Meter and it brings simplicity and power to the world of Noise at Work and Environmental sound monitoring. From basic non-logging sound level meters to combined sound and dose meters with time and date stamped data logging capability. It is a full data logging, integrating sound and noise exposure meter (dosemeter) which has been designed for both Environmental Sound Monitoring and Noise at Work assessments.
| Instrument Standards | ISO 8041 : 2005 Human Response to Vibration ISO 5349 : 2001 Measurement and evaluation of human exposure to hand-transmitted vibration |
| Range (Integration = Acceleration) | Low: 0.05 - 200.0m/s-2 / 0.005 - 20.4g High: 0.50 - 2000.0m/s-2 / 0.05 - 204.0g |
| Measurement Channels | One |
| Parameters | Acceleration: Arms, Aeq, Amax, Peak, Vector Sum, HSE Exposure Points, EAV and ELV |
| Linear Operating Range | 72 dB |
| Frequency Weighting | WH - Hand Arm Filter |
| Memory | Flash memory storing up to 992 recordings |
| Transducer | Castle KD1010, 10mV/g |
| Noise Floor | <0.002 m/s-2 - Low Range <0.020 m/s-2 - High Range |
| Display | Full Colour Graphic OLED Display (160 x 128) |
| Batteries | NiMH re-chargeable cell pack- Typically 10 hours continuous use |
| Connections | Input: 3.5mm Stereo Jack Socket AC Output: 4 Pole 3.5mm Jack Socket Download: USB Micro B (Cable Supplied) Recharge: DC Socket (Charger & Cable Supplied) |
| Languages | English UK, English US, Chinese, French, German, Italian, Portuguese Brazilian, Russian, Spanish |
| Environmental | Temperature Operating Range: -10 to + 50ºC Humidity: Up to 90% RH Non Condensing |
| Electromagnetic Compatibility | Designed in accordance with the following Electromagnetic Compatibility Directives: SI 2005/281 2004/108/EC |
| Case | High Impact ABS plastic with tactile membrane keypad |
| RANGE | DISPLAY RANGE | LINEAR RANGE | PEAK RANGE |
| 30-100 | 29 – 101dB | 30 – 100dB | 40 – 103dB |
| 50-120 | 59 – 121dB | 50 – 120dB | 60 – 123dB |
| 70-140 | 69 – 141dB | 70 – 140dB | 80 – 143dB |
| Linear Operating Range | 70dB |
| Detector Characteristics | RMS and Peak |
| Frequency Weighting | ‘A’, ‘C’ & ‘Z’ Weighted in Accordance with IEC 61672-1-2002 Combinations of ‘A’, ‘A’&’C’ simultaneous or ‘A’&’Z’ simultaneous available for Leq, Lmax and Pmax |
| Time Weighting | ‘Slow’, ’Fast’ and ‘Impulse’ in Accordance with IEC 61672-1-2002 |
| Exchange Rate | 3dB, 4dB or 5dB |
| Criterion Level | 75dB, 80dB, 85dB or 90dB |
| Threshold Level | -5dB, -10dB or OFF |
| Peak | 3dB above top of selected range |
| Display | Custom alphanumeric LCD, digit size 7mm x 5mm |
| Memory | 2100 Data Intervals Maximum |
| Microphone/ Preamplifier | ACO 7146A pre-polarised ½” condenser microphone, 25mV / Pa |
| Calibration | 91.0 to 120.0dB @ 1KHz |
| Batteries | 1 x PP3 (9V) Approximately 12 hours continuous use |
| Operating Temperature | Operating Range: -10 to + 50ºC |
| Humidity | Effect: < 0.5dB from 25% to 90% RH |
| Vibration | No effect on instrument |
Castle GA2006H Vexo Tri-Axial Hand Arm Vibration Meter
Castle Sonus GA116L, Class 1 Data Logging Sound Level Meter
